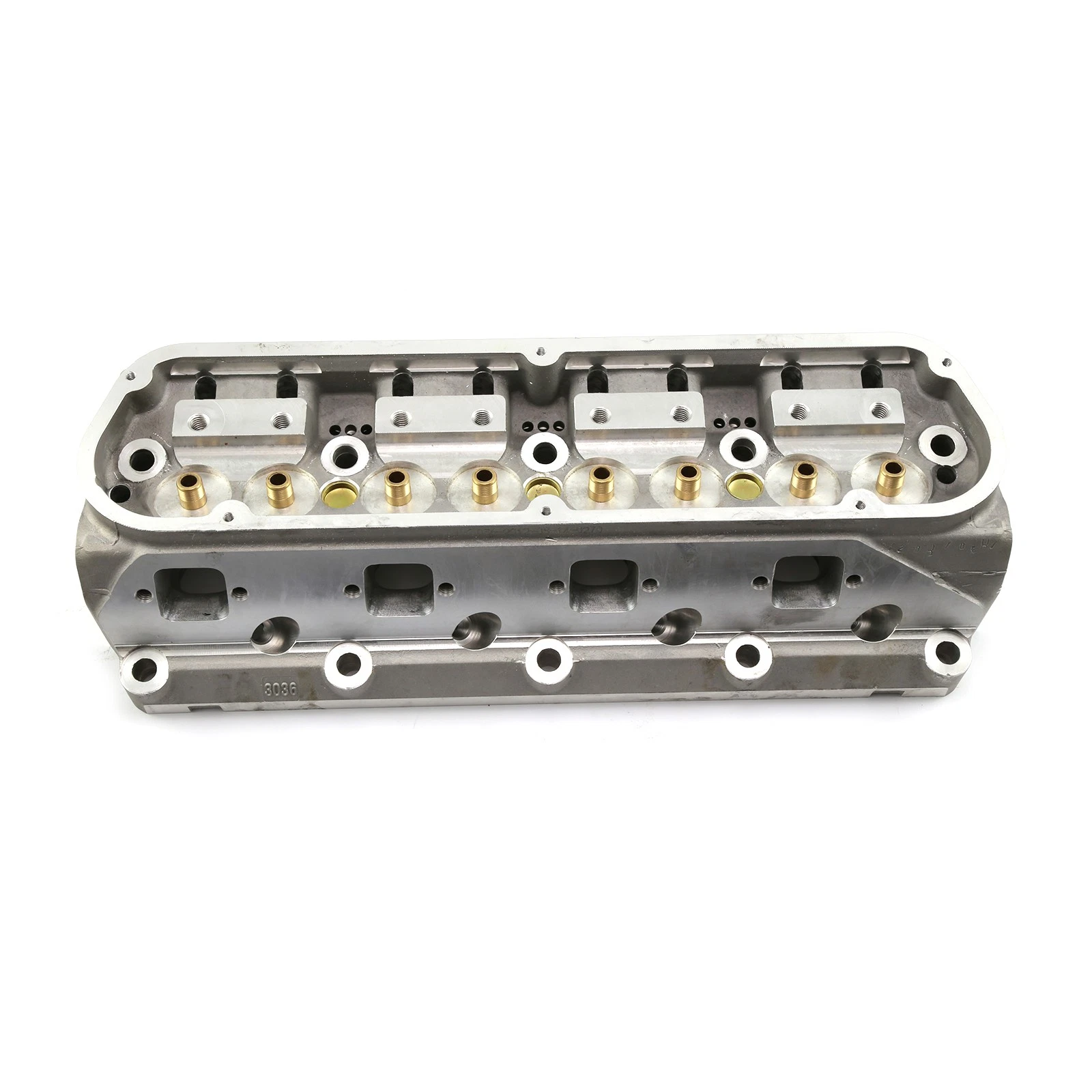

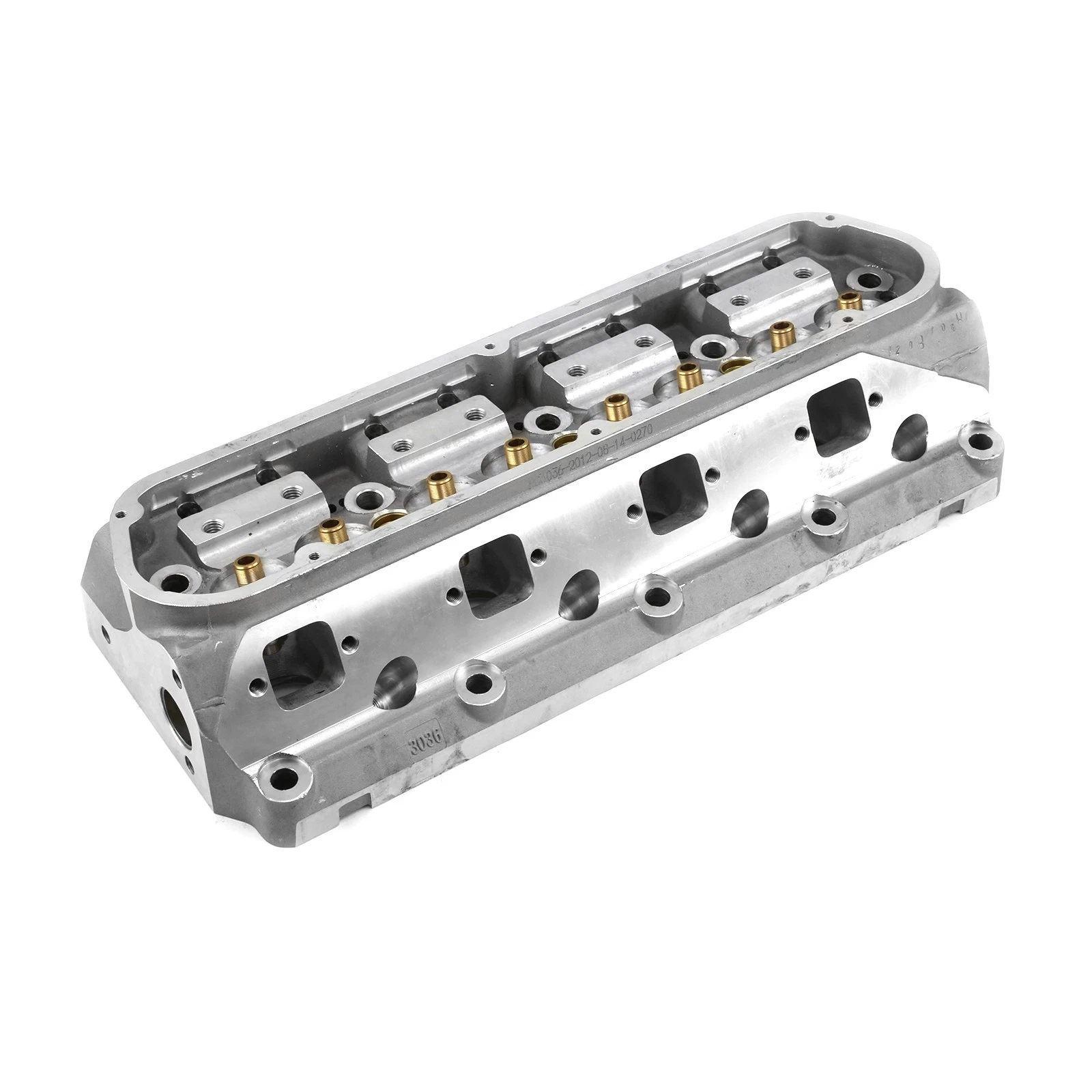

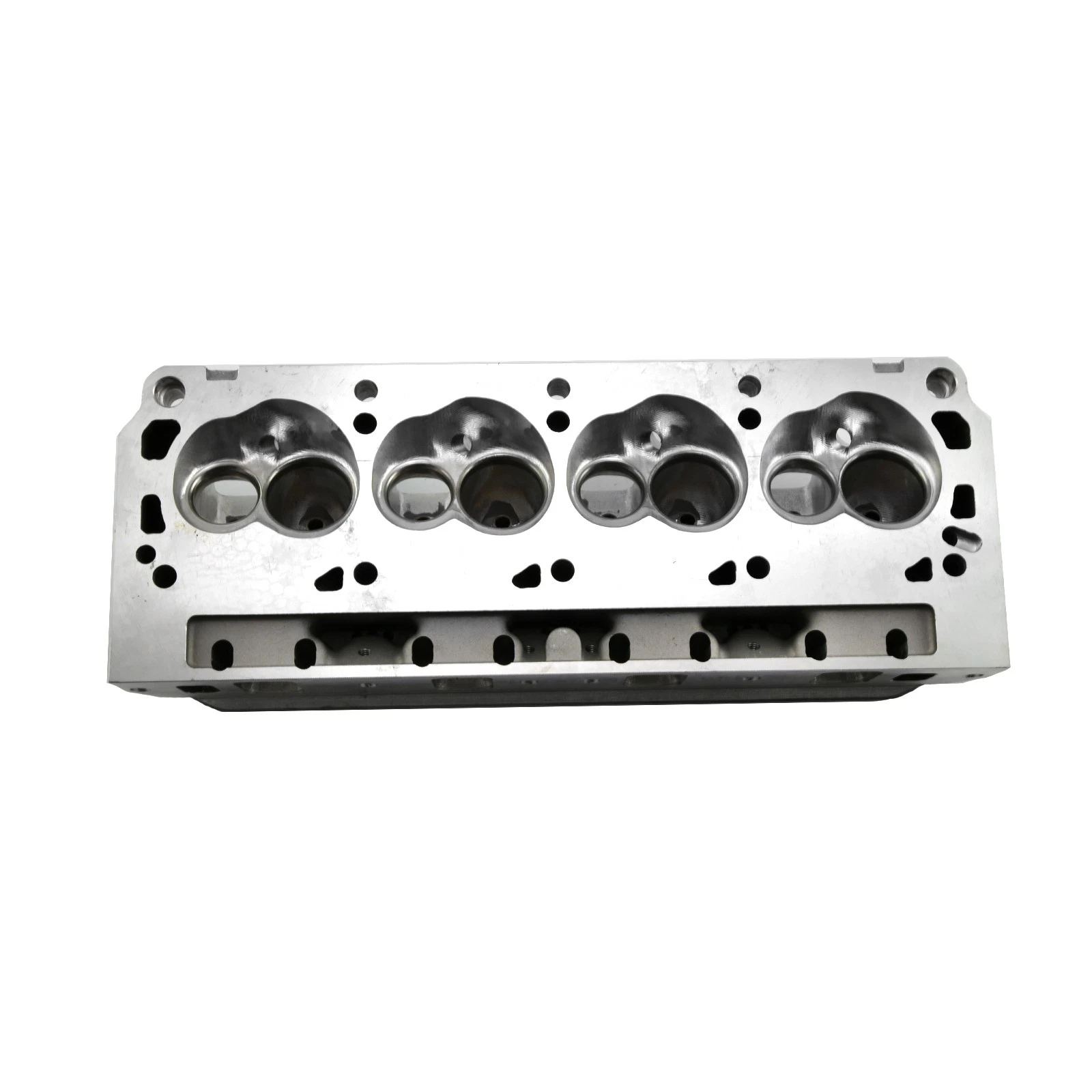

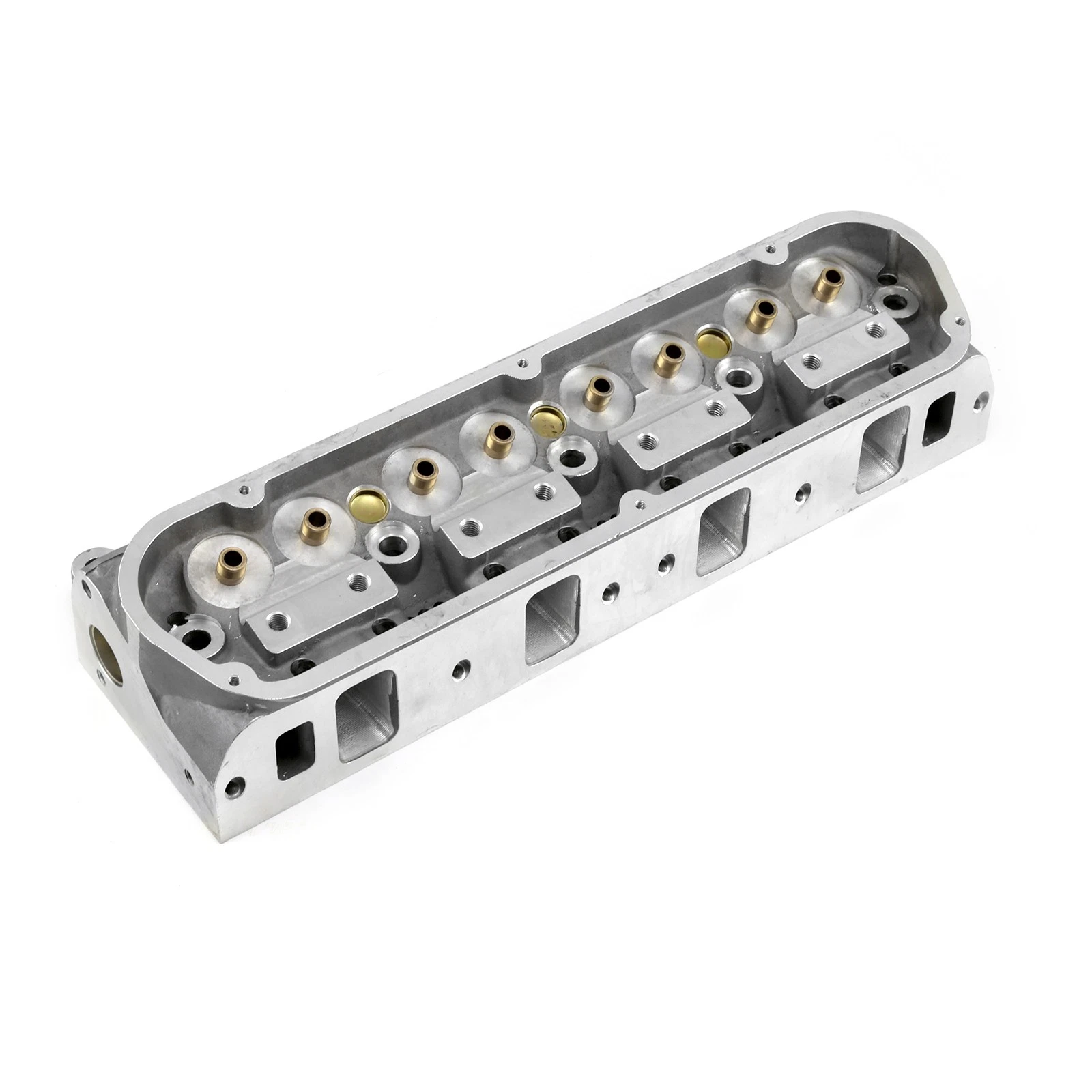

Assembled Hydraulic Roller Aluminum Cylinder Heads - Fits Ford Small Block 289 302 351 Windsor V8, 175cc Intake 62cc Chamber Max 0.580 Lift, Pair
Assembled Hydraulic Roller Aluminum Cylinder Heads - Fits Ford Small Block 289 302 351 Windsor V8, 175cc Intake 62cc Chamber Max 0.580 Lift, Pair

SPECIFICATION:

Part Number: PCE281.2045
Product Type: Pre-Assembled Aluminum Cylinder Head Pair
Engine Fitment: Ford Small Block 289 / 302 / 351 Windsor V8
Material: Gravity Die Cast Aluminum, Natural Finish
Combustion Chamber: 62cc (Non-CNC Machined)
Intake Runner Volume: 175cc (Non-CNC Port)
Intake Valve Diameter: 2.020"
Exhaust Valve Diameter: 1.600"
Max Supported Valve Lift: 0.580"
Valve Spring: Dual Spring with Damper, Outer Spring OD 1.450"
Spring Pressure: Closed Seat 145lbs, Open Seat 360lbs
Valve Seat: 3-Angle Machined Ductile Iron Seat
Valve Guide: Bronze Material
Retainers: Chromoly Steel, 10 Degree Locks Included
Valve Stem Seals: Positive Stop Style
Valve Cover Mount: Perimeter Bolt Pattern
Oil Feed Type: Through Pushrod Oiling
Heat Crossover: Not Drilled
Steam Holes: Not Drilled

FITMENT:
All vehicles equipped with Ford Small Block Windsor 289 / 302 / 351W V8 engines

PACKAGE DETAILS:
Includes: 2 × Fully Assembled Aluminum Cylinder Heads (Intake Valves, Exhaust Valves, Dual Valve Springs, Damper Springs, Chromoly Retainers, 10° Valve Locks, Bronze Valve Guides, Positive Stop Stem Seals Pre-installed)
Not Included: Rocker Arm Studs, Rocker Arms, Rocker Nuts, Guide Plates

IMPORTANT NOTES:
1. Gravity die cast aluminum construction offers lighter weight and higher rigidity compared to factory cast iron heads, boosting airflow and power output.
2. Designed for street and performance builds producing 400–700 HP, compatible with hydraulic roller camshafts up to 0.580" lift.
3. Non-CNC as-cast ports and chambers, ideal for mild to medium performance street engine rebuilds and restorations.
4. Professional engine assembly is recommended; confirm cam lift and valvetrain compatibility before purchase.
