Performer RPM Air-Gap Intake Manifold for 1955–1986 Chevy SBC 262–400 V8

Part Number: ED7501

Condition: 100% Brand New in Box

🔧 Product Overview

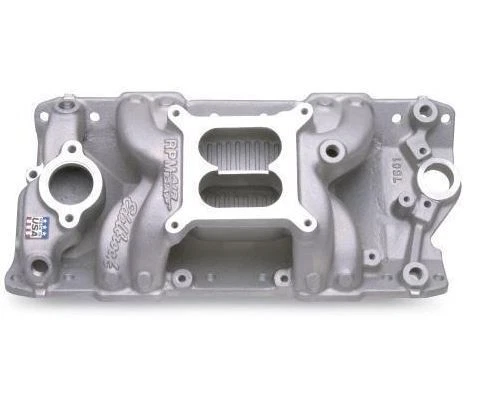

Designed for 1955–86 Chevrolet small block V8 engines (262–400 c.i.d.), the Edelbrock RPM Air-Gap Intake Manifold offers race-proven performance with a street-friendly design. This dual-plane manifold features Edelbrock's signature open-air gap that isolates runners from engine heat—delivering a cooler, denser air/fuel mixture and greater horsepower.

✅ Key Features

• Fits Chevy 262–400 SBC engines (1955–1986)
• Dual-plane 180° firing order for balanced torque and horsepower
• Air-gap design isolates runners from hot engine oil
• Compatible with square-bore 4-bbl carburetors
• Made from high-grade cast aluminum with satin finish
• Ideal for street rods, muscle cars, and performance builds

📏 Specifications

• Material: Aluminum
• Finish: Satin
• Single/Dual Plane: Dual Plane
• Carburetor Flange: Square Bore (4150/4160)
• Front Height (A): 4.20"
• Rear Height (B): 5.25"
• Carb Pad Height: 4.27"
• Port Exit Dimensions: 1.14" x 1.95"

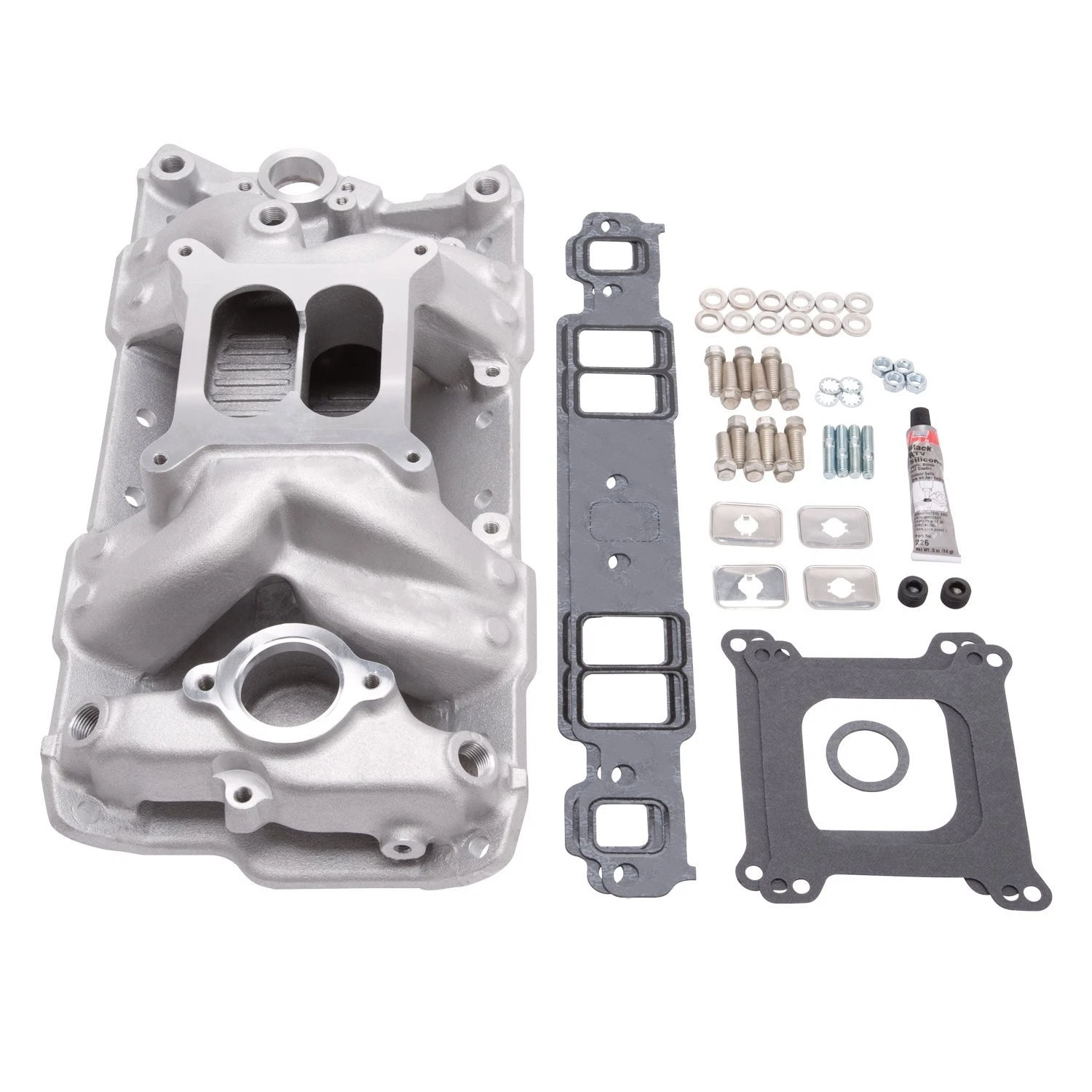

📦 What’s Included

• 1 × Edelbrock 7501 RPM Air-Gap Intake Manifold
• Include mounting bolts, gaskets,  hardware

🚗 Vehicle Compatibility

• 1955–1986 Chevrolet Small Block Engines
• 262 / 265 / 267 / 283 / 302 / 305 / 307 / 327 / 350 / 400 c.i.d.
• ⚠️ Will NOT fit Corvettes with stock hood clearance

🔧 Installation Notes

• Recommended Intake Gasket: Edelbrock #7201
• Use RTV sealant instead of end seal gaskets
• Use bolt kit: Edelbrock #8504
• Thread sealant required if bolts enter coolant/oil passages
• Do NOT overtighten NPT fittings to prevent cracking
• Professional installation is strongly recommended

🛡️ Warranty

•  6 months
